Product description
This paper core cutting machine can realise the whole process of automatic loading and unloading of paper tube.
The length of paper tube that can be loaded into the machine is 1600mm, the diameter is 30-160mm, the thickness
| model | SM1600-QAutomatic paper tube re-cutting machine |
|---|---|
| Paper Tube FeedingMethod | Automatic |
| Paper Tube Discharging Method | Automatic |
| Paper Tube Positioning | CNC Stepping System |
| active knife | yes |
| Paper tube length | 1600mm |
| Diameter of paper tube | 30 - 160mm |
| Minimum finished tube length | 55mm |
| Wall thickness of paper tube | 0.8 – 5mm |
| Maximum number of tools available | 12 |
| production efficiency | 5-7pcs/min |
| Machine Cutting Accuracy | <0.5mm |
| rated power | 3.5kw |
| gas consumption | 0.6Mpa |
| Machine weight | 1600kg |
| Machine size | 4930x 2700x 1550mm |

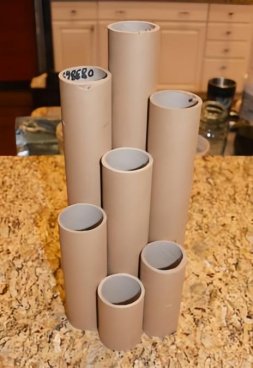

Design and configuration details of the SM1600-Q Paper Core Cutting Machine B.
Machine features
1.This machine is used to cut long paper tube into short paper tube precisely.
2.This machine can be used for very small diameter tubes. (Diameter up to 30MM)
Machine configuration, optional units, and pricing are confirmed per inquiry. Contact Barclay Liu at +86 131 7320 5213 with your paper stock grade, parent roll dimensions, target slit width, and downstream machine list, and the Senmei engineering team will respond with a configuration and lead time.
Senmei ships standard slitter and rewinder configurations from the Jiaozhou factory; lead time and commissioning scope confirmed per inquiry.
| HS Code | 8441.80 (other machinery for making up paper pulp, paper or paperboard) |
|---|---|
| Minimum order quantity (MOQ) | 1 unit |
| Lead time | 30–60 working days after deposit (confirmed per inquiry) |
| Payment terms | T/T 30% deposit + 70% balance after factory acceptance test; L/C at sight for large orders |
| Incoterms | FOB Qingdao (default) · CIF · CFR · DAP (door-to-door) |
| Packaging | Fumigation-free wooden case, anti-rust film, desiccant, foam-padded impact points; one standard machine per 20'GP |
| Loading port | Qingdao Port, Shandong Province, China |
| Country of origin | China |
| Certifications | CE marking (per shipment), ISO 9001 (manufacturer) |
| Warranty | 12 months limited on main components; wear parts excluded |
| Spare parts availability | 5 years from shipment date |
| Installation & training | One-for-one on-site engineer dispatch (quoted separately); remote video support included free first year |
| Documentation | Commercial invoice, packing list, certificate of origin (Form A / E / F), CE declaration, fumigation certificate |
For accurate FOB pricing, CIF quote to your destination port, and door-to-door delivery to your facility, contact Senmei with your destination country and tube specifications. Reply within 24 hours on business days via WhatsApp or email.
