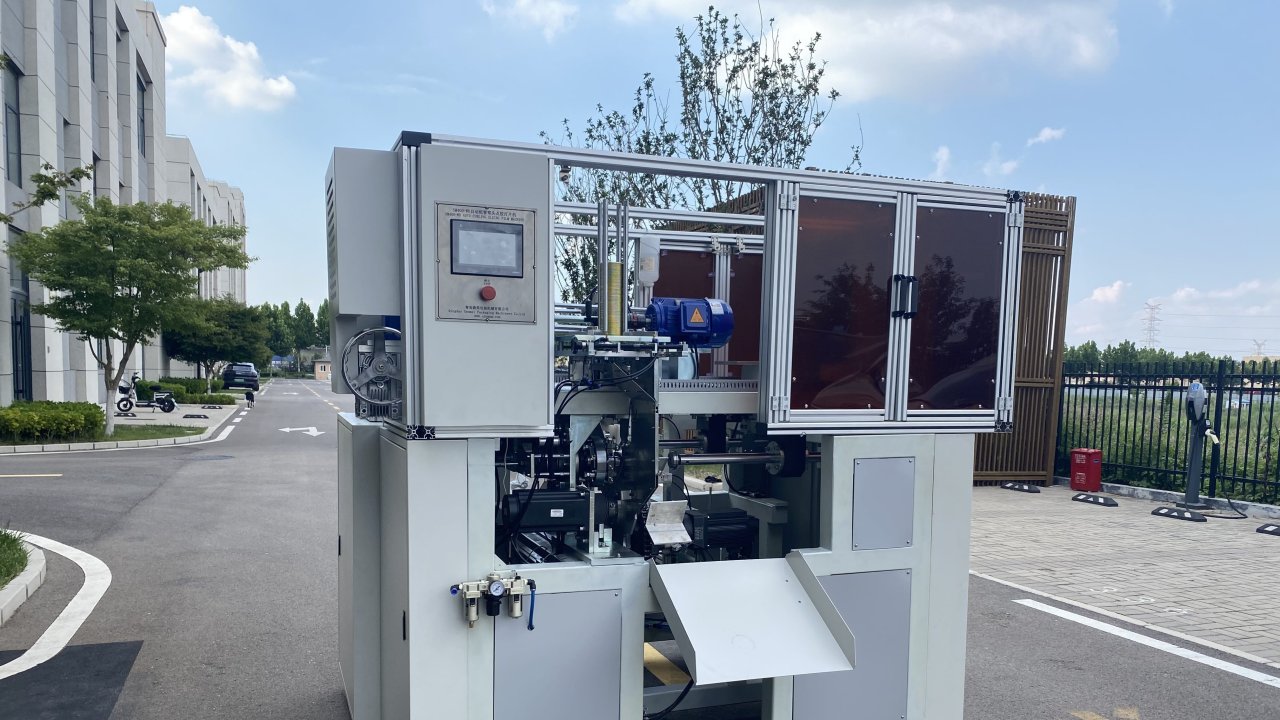

Potato Chips Can Package Production Line

Overview

One line, four stations, ready-to-fill snack cans.

The Qingdao Senmei potato chips can production line is a focused, food-grade-integrated line for converters supplying the snack aisle. Starting from pre-formed spiral-wound paper tubes, the line cuts to length, applies the printed label, curls the bottom with a paper disc, and heat-seals the top with foil or plastic — exiting as a finished can ready for filling.

It is the right choice when the upstream body winding is sourced externally (or run on a separate spiral paper tube machine) and the goal is a dedicated snack-can output. A smaller footprint than the full composite can line, but the same Senmei engineering and recipe platform.

Working principle

How it runs.

Pre-formed paper tubes enter the cutting station, where a servo multi-blade cutter trims them to can length and ejects the finished blanks onto a takeaway conveyor. Labeling station reads the tube seam with an optical sensor and applies the printed wrap with water-based or hot-melt adhesive — alignment error below 0.3 mm.

Labeled cans index into the curling station, where a paper disc is fed from the magazine and pressed into the base. A 360° curling mold locks the disc in place — no metal end. Sealing station applies the heat-seal foil membrane or snap-fit plastic lid. Finished cans pass through the vision-check station, are counted, and exit onto a takeaway conveyor for stacking and pack-out.

Applications

Where it fits.

• Potato chips and tortilla chips. Paper-bottomed cans in 50 g, 100 g, 150 g, and family-pack formats.
• Nuts and dried fruit. Almonds, cashews, pistachios, raisins — with optional foil liner for shelf life.
• Popcorn and extruded snacks. Cylindrical snack formats in retail and food-service sizes.
• Confectionery. Candy, biscuits, and seasonal gift packaging.
• Pet treats. Mid-format cans for premium pet food and supplement brands.
