Name: SM600-F Paper Tube Sealing Machine A
Brand: Senmei
SKU: SM600-F
Availability: InStock

Overview

Single-head sealing, calibrated for food-grade cans.

The Senmei SM600-F is a single-station sealing machine designed for food-grade paper tubes — the can that holds potato chips, nuts, candy, or any snack that needs a clean, hermetic metal or paper-bottom closure. A servo-driven pick-and-place arm loads the tube, a single sealing head closes the cap, and the finished can is discharged onto the takeaway conveyor.

The frame is built around Ø 40–160 mm tube diameters and tubes up to 500 mm tall, with recipe-driven changeover between metal caps and paper bottoms. The machine is the standard end-of-line station on Senmei's integrated snack can production line, and ships as a standalone unit for lines that already cut, label, and curl upstream.

CE certified Servo-driven Ø 40–160 mm 23–25 pcs/min Food-grade

Request a quote Download spec sheet (PDF)

Key features

Built around uptime, not just speed.

Automatic tube feeding. Servo-driven hopper delivers a steady flow of tubes to the sealing station without operator intervention.
Automatic discharge. Sealed cans exit onto the takeaway conveyor, ready for downstream inkjet, shrink-wrapping, or case packing.
Single sealing head. One calibrated head with recipe-controlled cap pressure; ideal for food-grade closures with metal or paper bottoms.
Quick-change tooling. Switch between tube diameters in under 15 minutes; recipe auto-loads from the HMI.
Metal-cap and paper-bottom compatible. The same head handles both formats — swap the cap feeder, not the machine.
Touchscreen HMI. 10-inch industrial panel with multi-language UI and on-screen troubleshooting.
Safety-integrated guarding. Category 3 PL d safety circuit, CE-marked, food-grade stainless contact parts.

Trade information.

HS Code	8441.80 (other machinery for making up paper pulp, paper or paperboard)
Minimum order quantity (MOQ)	1 unit
Lead time	30–60 working days after deposit (confirmed per inquiry)
Payment terms	T/T 30% deposit + 70% balance after factory acceptance test; L/C at sight for large orders
Incoterms	FOB Qingdao (default) · CIF · CFR · DAP (door-to-door)
Packaging	Fumigation-free wooden case, anti-rust film, desiccant, foam-padded impact points; one standard machine per 20'GP
Loading port	Qingdao Port, Shandong Province, China
Country of origin	China
Certifications	CE marking (per shipment), ISO 9001 (manufacturer)
Warranty	12 months limited on main components; wear parts excluded
Spare parts availability	5 years from shipment date
Installation & training	One-for-one on-site engineer dispatch (quoted separately); remote video support included free first year
Documentation	Commercial invoice, packing list, certificate of origin (Form A / E / F), CE declaration, fumigation certificate

For accurate FOB pricing, CIF quote to your destination port, and door-to-door delivery to your facility, contact Senmei with your destination country and tube specifications. Reply within 24 hours on business days via WhatsApp or email.

Technical specifications

Standard configuration.

Model	SM600-F
Tube diameter	Ø 40 – 160 mm
Tube height	80 – 500 mm
Wall thickness	0.8 – 1.5 mm
Production speed	23 – 25 pieces per minute
Air pressure	0.5 MPa
Rated power	2.0 kW
Power supply	Three phases 380 V / 50 Hz
Machine footprint	1,780 × 1,900 × 1,750 mm
Weight	1,380 kg

Working principle

How the SM600-F runs.

An operator or upstream conveyor loads tubes into the hopper. A servo-driven pick-and-place arm transfers one tube at a time onto the indexing conveyor and into the sealing station. The cap feeder indexes a single metal cap (or paper bottom) into position; the sealing head descends with calibrated pressure and dwell time, then retracts.

The sealed can is released onto the takeaway conveyor. All recipe parameters — cap pressure, dwell time, head descent speed, indexing delay — are stored per stock and auto-loaded from the HMI on diameter change. The control panel surfaces production count, reject count, and current recipe on the home screen.

Applications

Where the SM600-F fits.

Potato chip cans. Ø 73–80 mm × 200–280 mm paper-bottom or aluminum-laminated cans at 24 pcs/min.
Nut and seed cans. Ø 100 mm × 200 mm cans for cashews, almonds, pistachios, sunflower seeds.
Confectionery. Ø 50–60 mm × 150 mm candy and chocolate tubes.
Coffee and tea. Ø 80–100 mm × 200–250 mm single-serve coffee tubes, food-grade closures.
Snack pellets. Ø 60 mm × 180 mm tubes for popcorn, cheese balls, and extruded snacks.

Why Senmei

Three reasons customers keep coming back.

01

Tuned to your stock, not ours.

Every SM600-F ships with a recipe card for your specific tube diameter, cap format, and ambient conditions. Sealing pressure and dwell time are dialed in before crating.

02

Tested on your tubes, in our factory.

Senmei engineers run a factory acceptance test with your stock before the machine ships.

03

Support that doesn't expire.

Lifetime remote diagnostics, on-site engineer dispatch available globally, and a 12-month warranty — extended to 24 months on request.

Related machines

Model

SM600-F Paper Tube Sealing Machine A

Single-head sealing, calibrated for food-grade cans.

Built around uptime, not just speed.

Trade information.

Standard configuration.

How the SM600-F runs.

Where the SM600-F fits.

Three reasons customers keep coming back.

Tuned to your stock, not ours.

Tested on your tubes, in our factory.

Support that doesn't expire.

Ready to specify a sealing line?

Related machines

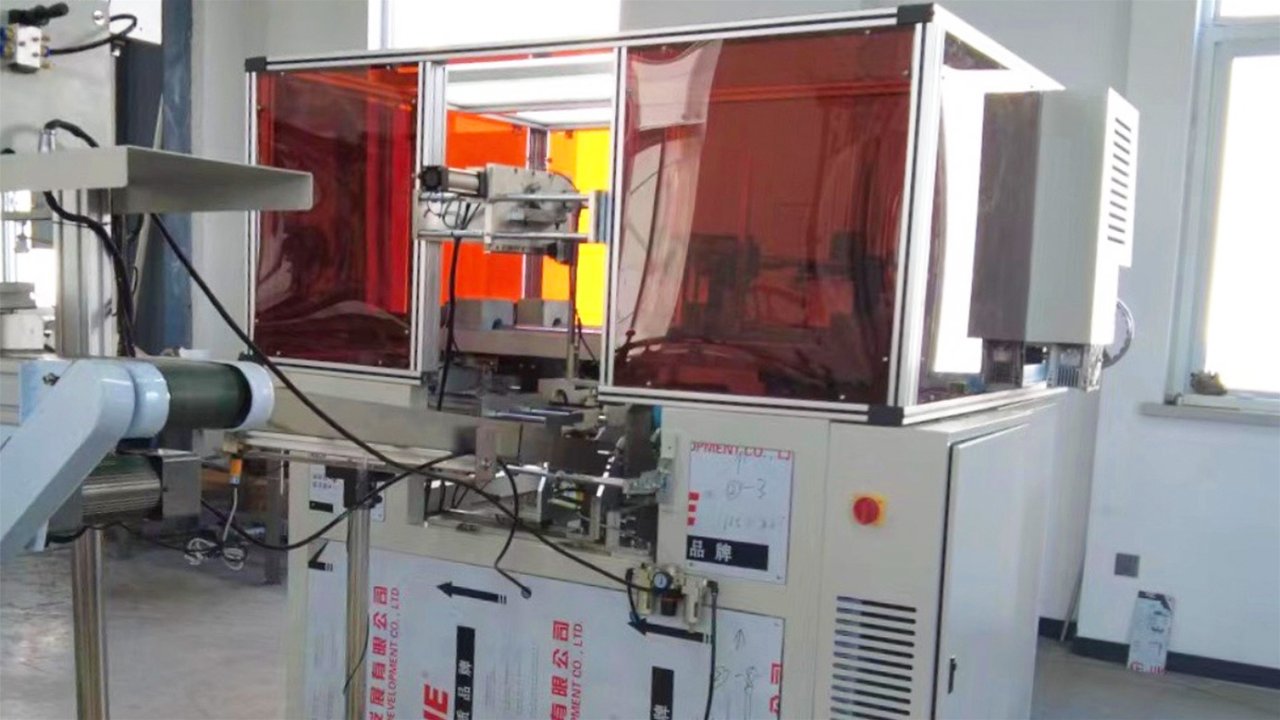

Automatic Paper Tube Sealing Machine for Paper Cans

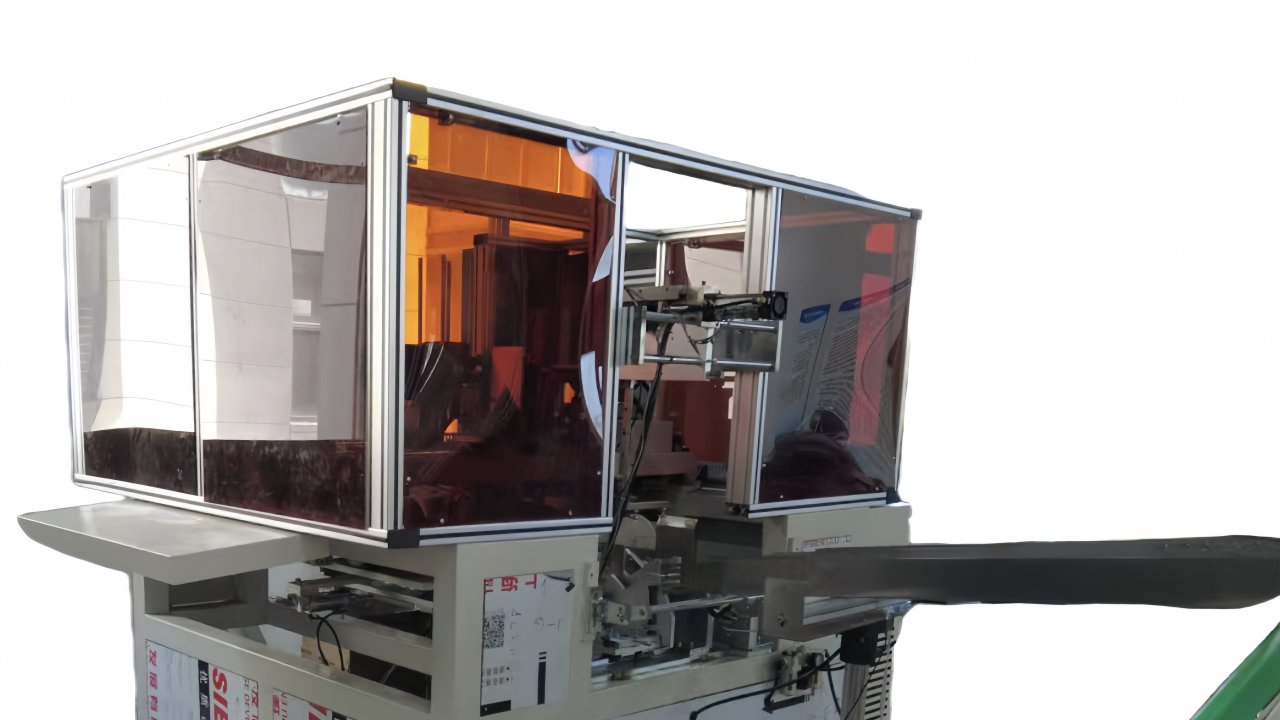

Efficient Paper Tube Capping Machinery
