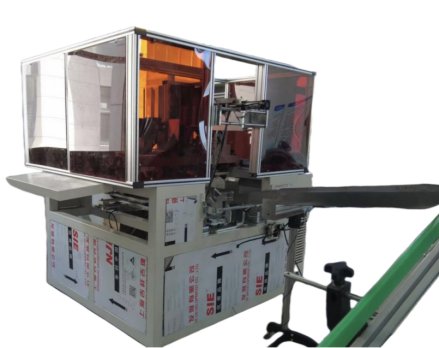

Paper Tube Capping Machine.
Technical Parameters:
● Including: curling, inserting, dispensing, sealing, and four functions.
Adopting stepped multi-station intermittent pipe feeding, with high production efficiency.
Technical Parameters: ● Including: curling, inserting, dispensing, sealing, and four functions. Adopting stepped multi-station intermittent pipe feeding, with high production efficiency. ● All transmission and functional actions of the machine are mechanically
Technical Parameters:
● Including: curling, inserting, dispensing, sealing, and four functions.
Adopting stepped multi-station intermittent pipe feeding, with high production efficiency.
| Model | PAPER TUBE CAPPING MACHINE |
|---|---|
| Applicable Tube Diameter | ø 50 - ø 160 |
| Applicable Tube Height | 150-400mm |
| Applicable Gasket Thickness | 1.0-3.0MM |
| Production Efficiency | 25-30 times/minute |
| Total Power | 1.5KW |
| Gas Pressure | 0.4Mpa |
| Applicable Voltage | Three-phase 380V, 50HZ |
Design and configuration details of the Paper Tube Capping Machine.
Machine features
1. The paper tube capping machine adopts stepped multi-station intermittent tube feeding, which has high production efficiency.
2. All transmission and functional movements of the machine adopt mechanical linkage. The equipment operates stably, with high repeatability and long service life.
Machine configuration, optional units, and pricing are confirmed per inquiry. Contact Barclay Liu at +86 131 7320 5213 with your paper stock grade, parent roll dimensions, target slit width, and downstream machine list, and the Senmei engineering team will respond with a configuration and lead time.
Senmei ships standard slitter and rewinder configurations from the Jiaozhou factory; lead time and commissioning scope confirmed per inquiry.
| HS Code | 8441.80 (other machinery for making up paper pulp, paper or paperboard) |
|---|---|
| Minimum order quantity (MOQ) | 1 unit |
| Lead time | 30–60 working days after deposit (confirmed per inquiry) |
| Payment terms | T/T 30% deposit + 70% balance after factory acceptance test; L/C at sight for large orders |
| Incoterms | FOB Qingdao (default) · CIF · CFR · DAP (door-to-door) |
| Packaging | Fumigation-free wooden case, anti-rust film, desiccant, foam-padded impact points; one standard machine per 20'GP |
| Loading port | Qingdao Port, Shandong Province, China |
| Country of origin | China |
| Certifications | CE marking (per shipment), ISO 9001 (manufacturer) |
| Warranty | 12 months limited on main components; wear parts excluded |
| Spare parts availability | 5 years from shipment date |
| Installation & training | One-for-one on-site engineer dispatch (quoted separately); remote video support included free first year |
| Documentation | Commercial invoice, packing list, certificate of origin (Form A / E / F), CE declaration, fumigation certificate |
For accurate FOB pricing, CIF quote to your destination port, and door-to-door delivery to your facility, contact Senmei with your destination country and tube specifications. Reply within 24 hours on business days via WhatsApp or email.
Send Senmei your product specifications and target output. The engineering team will come back with a configuration proposal.
